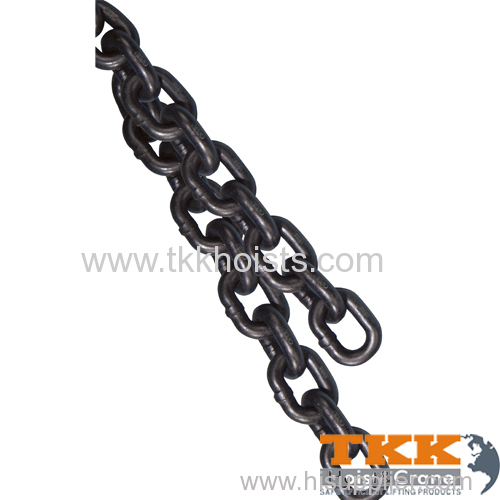

G80 LIFTING CHAIN
Kinds of chains, made of low-carbon alloy steel, anti-impact, high loading capacity, ductility elongation.
G80 chain meet with DIN5687 DIN5688 German standard and iso3076. We can process the surface according to the customers need
G80 high strength chain, breaking pressure ≥80MPA
Size dxp (mm) | Width | Approx. Weight (kg) | Test Load(KN) | Test Load (KN) | Breaking Load min(KN) | |
| Inside min (mm) | Outside max(mm) | |||||
6x18 | 7.5 | 21 | 0.79 | 1.1 | 27 | 45.2 |
7x21 | 9 | 24.5 | 1.07 | 1.5 | 37 | 45.2 |
8x24 | 10 | 28 | 1.38 | 2 | 48 | 61.6 |
10x30 | 12.5 | 35 | 2.2 | 3.2 | 76 | 80.4 |
11x43 | 12.6 | 36.5 | 2.33 | 3.8 | 92 | 125 |
12x36 | 15 | 42 | 3.1 | 4.6 | 109 | 154 |
12.5x38 | 15.5 | 42.2 | 3.3 | 4.9 | 117 | 181 |
13x39 | 16.3 | 46 | 3.8 | 5 | 128 | 196 |
14x42 | 18 | 49 | 4.13 | 6.3 | 150 | 214 |
14x50 | 17 | 48 | 4 | 6.3 | 150 | 250 |
15x46 | 20 | 52 | 5.17 | 7 | 168 | 280 |
16x48 | 20 | 56 | 5.63 | 8 | 192 | 320 |
16x49 | 24.5 | 59.5 | 5.71 | 8 | 192 | 320 |
16x64 | 23.9 | 58.9 | 5.11 | 8 | 192 | 320 |
18x54 | 23 | 63 | 6.85 | 10 | 246 | 410 |
18x64 | 21 | 60 | 6.6 | 10 | 246 | 410 |
19x57 | 23.7 | 63.2 | 7.7 | 11.3 | 270 | 450 |
20x60 | 25 | 70 | 8.6 | 12.5 | 300 | 500 |
22x65 | 28 | 74.2 | 10.7 | 15.3 | 366 | 610 |
22x66 | 28 | 77 | 1.2 | 15.3 | 366 | 610 |
22x86 | 26 | 74 | 9.5 | 15.3 | 366 | 610 |
24x72 | 32 | 82 | 12.78 | 18 | 432 | 720 |
24x86 | 28 | 79 | 11.6 | 18 | 432 | 720 |
26x78 | 35 | 91 | 14.87 | 21.3 | 510 | 850 |
26x92 | 30 | 86 | 13.7 | 21.3 | 510 | 850 |
30x90 | 38 | 105 | 19.6 | 28.3 | 678 | 1130 |
30x108 | 34 | 98 | 18 | 28.3 | 678 | 1130 |
32x96 | 40 | 106 | 22.29 | 32.2 | 772 | 1286 |
34x126 | 38 | 109 | 22.7 | 36.3 | 870 | 1450 |
34x102 | 46.5 | 121.5 | 25.5 | 36.3 | 870 | 1450 |
36x108 | 49.5 | 128.5 | 31 | 40.7 | 978 | 1630 |
38x137 | 42 | 121 | 29 | 45.3 | 1086 | 1810 |
38x114 | 52 | 136 | 32 | 45.3 | 1086 | 1810 |
42x126 | 55.5 | 144.5 | 38.6 | 55.4 | 1332 | 2200 |
G100 LIFTING CHAIN
EN818-2 LIFTING CHAIN
Made from high-quality alloy steel.
Surface treatment: self-color, polishing, black, plastic coating, hot-dip, galvanized, etc.
Manufacture standard: ISO, DIN, BS, JIS, ASTM.
Quality Grade: G80, G100.
Safety factor: min 4 times.
Product marking: G80 or required by client.
EN818-2 Structure
Size dxp | Inside min. | Outside max. | Approx. Weight | Working Load | Test Load | Breaking Load min. |
(mm) | (a) | (b) | (kg/m) | Limit (t) | (kN) | (kN) |
Φ6x 18 | 7.8 | 22.2 | 0.8 | 1.12 | 28 | 45.2 |
Φ7.1 x 21 | 9.2 | 26.3 | 1.1 | 1.6 | 39.6 | 63.3 |
Φ8x24 | 10.4 | 29.6 | 1.4 | 2 | 50.3 | 80.4 |
Φ9x27 | 11.7 | 33.3 | 1.8 | 2.5 | 63.6 | 102 |
Φ10x30 | 13 | 37 | 2.2 | 3.15 | 78.5 | 126 |
Φ11 x 33 | 14.3 | 40.7 | 2.7 | 3.8 | 95 | 152 |
Φ12x36 | 15.6 | 44.4 | 3.1 | 4.6 | 113 | 181 |
Φ13x39 | 16.9 | 48.1 | 3.8 | 5.3 | 133 | 212 |
Φ14x42 | 18.2 | 51.8 | 4.4 | 6.3 | 154 | 246 |
Φ16x48 | 20.8 | 59.2 | 5.7 | 8 | 201 | 322 |
Φ18 x 54 | 23.4 | 66.6 | 7.3 | 10 | 254 | 407 |
Φ20x60 | 26 | 74 | 9 | 12.5 | 314 | 503 |
Φ22 x 66 | 28.6 | 81.4 | 10.9 | 15 | 380 | 608 |
Φ23x69 | 29.9 | 85.1 | 12 | 16 | 415 | 665 |
Φ25x75 | 32.5 | 92.5 | 14.1 | 20 | 491 | 785 |
Φ26x78 | 33.8 | 96.2 | 15.2 | 21.2 | 531 | 849 |
Φ28x84 | 36.4 | 104 | 17.6 | 25 | 616 | 985 |
Φ32x96 | 41.6 | 118 | 23 | 31.5 | 804 | 1290 |
