Disc Brake Hand Chain Hoist
Outstanding Features
1. Adopt Japan Technology
2. Alloy steel G80 load chain is in safety operation and long life.
3. Galvanized hand chain as standard
4. Forged and heat treated load hooks will be transformed slowly if overload.
5. Wet Friction discs with longer lift.
6. Gear case and hand wheel cover resistant to external shocks.
7. Double pawl mechanism enhances brake safety and reliability.
8. Load sheave with sealed roller bearing or bush option.
9. Low effort to lift maximum load
10. Widely used in power station and electric installation, etc.
Technical Index

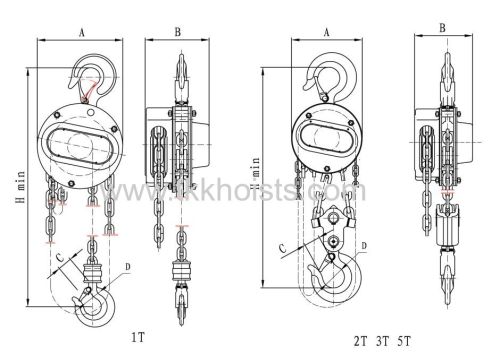

Model | Capacity | Lifting Height | Test Load | Falls of Load Chain | Dimension of Load Chain (mm) | Force of Full Load (N) | Net Weight | Dimension (mm) | ||||
a | b | e | d | Hmin | ||||||||
VA005 | 0.5 | 3 | 0.75 | 1 | 5 | 250 | 9 | 140 | 123 | 22 | 34 | 350 |
VA010 | 1 | 3 | 1.5 | 1 | 6.3 | 330 | 11.8 | 245 | 143 | 24 | 34 | 390 |
VA015 | 1.5 | 3 | 2.25 | 1 | 7.1 | 340 | 14.5 | 165 | 143 | 30 | 46 | 430 |
VA020 | 2 | 3 | 3 | 1 | 8 | 340 | 19.4 | 190 | 175 | 30 | 46 | 480 |
VA030 | 3 | 3 | 4.5 | 2 | 7.1 | 350 | 21.7 | 190 | 143 | 32 | 52 | 520 |
VA050 | 5 | 3 | 7.5 | 2 | 9 | 390 | 36.4 | 240 | 175 | 25 | 63 | 690 |
VA100 | 10 | 3 | 15 | 4 | 9 | 410 | 69.3 | 370 | 190 | 60 | 80 | 1000 |
VA200 | 20 | 3 | 30 | 8 | 9 | 440 | 122 | 750 | 190 | 100 | 70 | 1400 |
